3.119: Velocity–time graph and related particle

0606/12/F/M/24 — Question 6 · 9 marks

3.119 diagram
(a)(i)
In this question all distances are in metres and all times are in seconds.

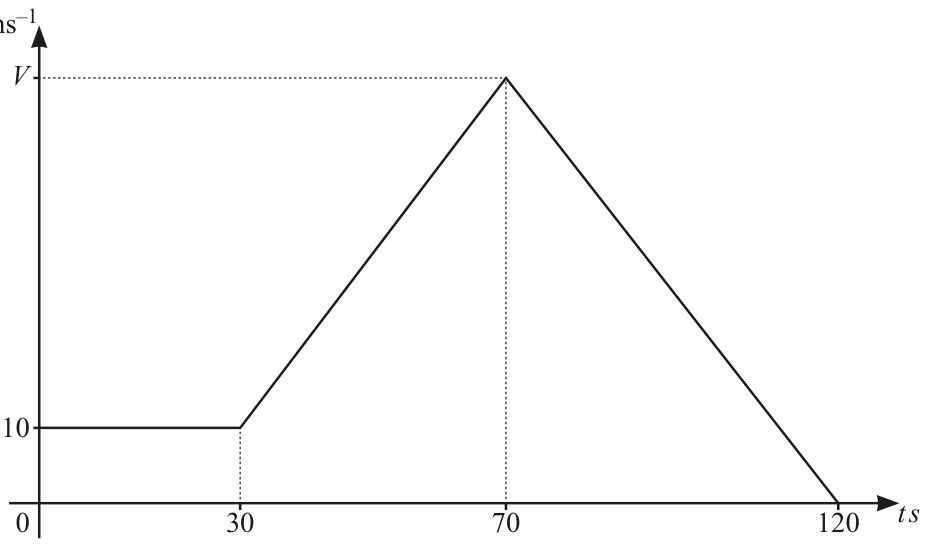

The diagram shows the velocity–time (vv–tt) graph of a particle travelling in a straight line. The particle travels a distance of 2750 m2750\,\mathrm{m} in 120 s120\,\mathrm{s}. Find the velocity, VV, of the particle when t=70t=70.
[2]
(a)(ii)
Find the acceleration of the particle for 70⩽t⩽12070\leqslant t\leqslant 120.
[2]
(b)(i)
A different particle moves in a straight line such that its velocity, v ms−1v\,\mathrm{ms}^{-1}, tt seconds after leaving a fixed point OO, is given by v=(t2+12)5v=\left(t^{2}+\dfrac{1}{2}\right)^{5}.
Find the exact acceleration of the particle when t=2t=2.
[4]
(b)(ii)
Explain why the particle does not change direction for 0⩽t⩽20\leqslant t\leqslant 2.
[1]
